Jeti Tauro H2500 LED

The hybrid Jeti Tauro H2500 LED relies on UV LED curing to offer you vivid six color (plus white or white and primer) prints, incredible productivity (up to 390 m²/h), and cutting-edge automation for countless rigid and flexible media applications.

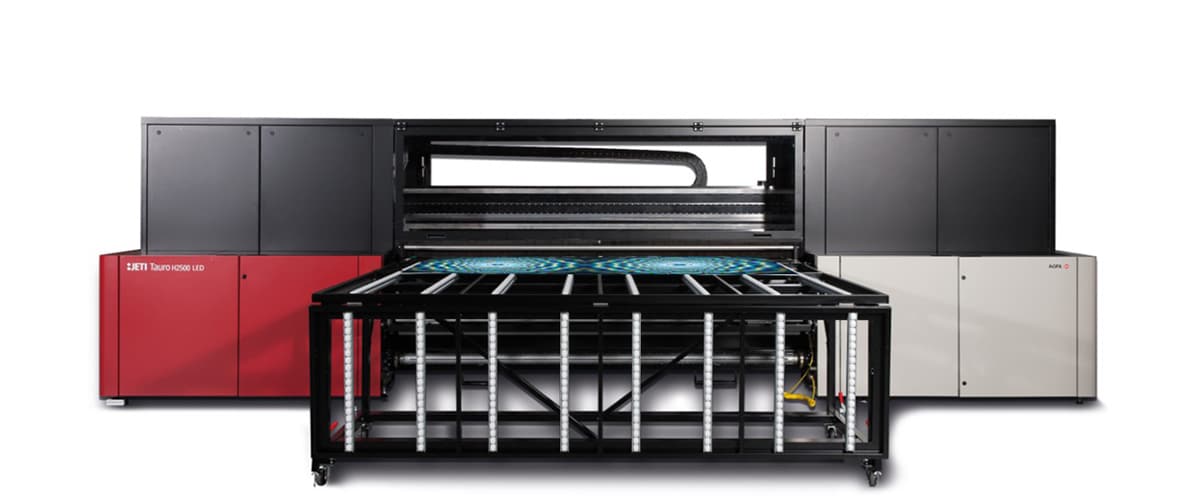

Jeti Tauro H2500 front view
Book a demo

A robust hybrid UV inkjet printer with an integrated roll-to-roll system, the Jeti Tauro H2500 LED features continuous and automated feeding of rigid and flexible media. Its possibilities for high-end sign and display printing are endless – UV LED curing, prints of up to 2.54 m wide, print speeds of up to 390 m²h, and countless applications.

The Jeti Tauro H2500 comes standard with a built-in light roll-to-roll for occasional, single-roll printing. The master roll-to-roll option is ideal for long-run roll-to-roll jobs. The printer can also be used for roll-to-sheet – enabling fast throughput and hardly any material waste.

Driven by Asanti workflow technology and optimized to work with Agfa’s high-pigmented UV inks, the Jeti Tauro H2500 LED takes on any challenge. Expect only high-quality prints that stand out every time.


  • Hybrid printer with integrated light roll-to-roll system, and optional master roll-to-roll
  • Manual, continuous and automated feeding of rigid and flexible media
  • UV LED print technology for added economical, ecological and business-generating benefits
  • Outstanding print quality in six colors plus white or white and primer
  • 32 fast-firing inkjet print heads, each with 4 nozzle rows for 2 colors per head
  • Gloss mode for an even larger color gamut and enhanced spot color reproduction without loss of image quality or extra ink usage
  • Powered by smart Asanti workflow software
  • Optional automation to reduce idle time and increase production efficiency

In detail

UV LED print technology

Equipped with UV LED lamps for the curing process, the Jeti Tauro H2500 LED offers major advantages in terms of performance, costs, maintenance, the environment and the generation of extra business.
Discover the benefits of UV LED print technology.

A robust hybrid printer

A true hybrid printer, ruggedly build to handle extreme workloads, 24/7 printing and a wide variety of rigid and flexible substrates, the Jeti Tauro H2500 LED is suited for substrate widths of up to 2.54 m and rigid media up to 4 m long.

Incredible productivity

This high-end hybrid printer features up to 32 fast-firing inkjet print heads, each with 4 nozzle rows for 2 colors per head. Add to that Agfa’s UV-curable inks and dedicated waveform that is designed to work in perfect harmony with the print heads, and you have the perfect combination of productivity and superior print quality. While 24 print heads print in color, 8 are dedicated to pre- and post-white, sandwich white and/or primer printing.

Continuous board feeding

The Jeti Tauro H2500 LED comes standard with manual media loading tables, perfect for smaller runs. Boards can be loaded in one continuous flow for maximum convenience, efficiency and productivity.

Automated board feeding

For larger runs or runs with multiple board stacks, the engine’s automatic feeding system further optimizes productivity. When upgraded with an automated board feeder (ABF), it can process up to 4 boards automatically, increasing production efficiency by up to 30%.

Registration pins assure accurate board alignment (up to 1 mm accuracy), which is particularly relevant for recto verso prints. The Asanti software automatically selects a pin set configuration depending on the size of the media.

Ball rollers give extra support for heavy or large boards. Vacuum belts that are kept perfectly straight at all times feed the media smoothly into the engine.

The graphic user interface (GUI) of the Jeti Tauro drives the ABF and assists the operator in loading the ABF in a correct way.

Jeti Tauro LED tilted

With oversized boards, the flaps at the end of the scissor stacker can be tilted so that there is room for the boards to protrude beyond the pallet.

Jeti Tauro LED Pick & Place

With oversized boards, the flaps at the end of the scissor stacker can be tilted so that there is room for the boards to protrude beyond the pallet.

Jeti Tauro LED Capstan roll presses

Printed media are driven on and pressed against the conveyor table by capstan roll presses.

Master roll-to-roll

The Jeti Tauro H2500 LED is ideal for long-run roll-to-roll jobs (master rolls), though it can also be used for roll-to-sheet – enabling fast throughput and hardly any material waste. Dual roll mode doubles productivity. Changing from single to dual-roll printing and vice versa is fast, as is undocking the roll-to-roll system in order to switch to rigid mode.

Product movie


A versatile hybrid printer, the Jeti Tauro H2500 LED prints on a wide variety of media: banners, posters, signage (e.g. traffic or industrial information), exhibit graphics, POP, mock-ups, backlit, front-lit, self-adhesives (labels) etc. It can also be used for niche applications such as wood, art reproductions, party favors, architectural and interior decoration and more.


InksAgfa’s UV-curable LED inks: the perfect match

Specially formulated to print on rigid or flexible media, Agfa’s award-winning Anuvia UV LED inks broaden the scope of possible applications. This is what you can expect:

  • Vibrant colors, impressive results
  • The lowest ink consumption out there
  • Excellent adhesion and durability
  • Advanced white printing and ink management
  • Primer option
Find out more


AsantiThe Jeti Tauro 2500 LED is driven by Agfa’s wide-format workflow software Asanti, which controls the entire printing process from prepress to production and finishing. As such, it simplifies, optimizes and automates as many steps as possible, offering you a high-performance solution for increased productivity.

In addition, Asanti’s smart imaging algorithms help optimize your ink consumption, and consequently, reduce your costs and environmental footprint. Asanti’s comprehensive integration of file handling, color management and preflighting guarantees smooth, error-free jobs ready to send to the appropriate wide-format output devices.

Among other possibilities that Asanti offers are the creation of personalized productivity modes and job parameter reporting for increased control. ‘Media recipes’ control all parameters for a particular substrate.

To integrate a non-Agfa RIP/workflow with the Jeti Tauro, we developed TauroConnect, which captures data from the workflow in place and takes care of screening, output quality, and printing parameters.

Find out more


As a cloud-based web-to-print solution that enables print buyers to place orders online 24/7, Asanti StoreFront will help you expand your customer base and increase your revenue in no time.

MacBook StoreFront

Easy file sharing

The Tauro H3300 LED integrates perfectly with PrintSphere, our cloud-based service that offers a standardized way for production automation, easy file sharing and safe data storage.

MacBook PrintSphere

Print standardization

PrintTune, our comprehensive and unique print standardization software, guarantees color consistency and ensures that printing jobs meet in-house standards or commonly known color spaces from Fogra or IDEAlliance. Through objective measuring and powerful analytics, it helps lower media waste, increase efficiency, and improve communication between all stakeholders.

Technical Specs

Four configurations, depending on the applications that you run.

Jeti Tauro H2500 LED 6C – 6 colors (24 heads)

Jeti Tauro H2500 LED 6C W4 – 6 colors and white (28 heads)

Jeti Tauro H2500 LED 6C W8 – 6 colors and white (32 heads)

Jeti Tauro H2500 LED 6C W4 P2 – 6 colors, white and primer (30 heads)

Media & printing specifications
Sheets & boards
Maximum width 2.54 m (100” or 8.33 ft)

On the ABF: 2.54 m (100” or 8.33 ft)

Maximum length 4.0 m (157.5” or 13.1 ft)

With automation: up to 1.85 m (6.07 ft) (up to 4 m in bypass mode (13.12 ft))

Minimum size DIN A3, 29.7 x 42 cm (11.7 x 16.1”)

Smallest boards on the ABF: 500 x 700 mm (portrait)

Thickness Min. 0.2 cm (80 mil) – max. 5 cm (1.97”) (media-dependent)
Maximum weight 10 kg/m² with a maximum of 60 kg evenly distributed over the table

On the ABF: maximum weight 10 kg/m² with a total of 43 kg

Sheets: from 200 gr/m² and up

Borderless printing Yes. Also in combination with parallel board printing.
Roll-to roll
Integrated RTR
Master single roll
Master dual roll
Maximum width 2.54 m (100” = 8.33 ft) 2.54 m (100” = 8.33 ft) 1.22 m (48” = 4 ft)
Minimum width 33 cm (13” = 1.08 ft)
Maximum length Full roll length (depends on total roll thickness, diameter and weight)
Thickness Min. 0.2 mm (0.008” = 8 mil) – max. 3.2 mm (0.125” = 118 mil)
Maximum weight

(mounted at the center of the shaft)

100 kg 700 kg (depending on the roll width)
Maximum roll outside diameter 360 mm (14.0”) 600 mm (23.6”)
Roll mounting Pneumatic shafts for 76.2 mm – 3” (standard) Pneumatic shafts for 76.2 mm – 3” (standard)
6” pneumatic shafts available on request
Borderless printing Yes, with protection paper or tape on the belt
Double-sided printing No provisions available for registration in double-sided printing
Productivity (for ABF dependent on size and number of boards)
Express mode Up to 390 m²/h (4198 ft²/h)
Media types Rigid as well as flexible media (check with your local Agfa representative for a detailed list)
Print heads & inks
Print heads Piezoelectric Ricoh MH
Inks CMYKcm or CMYKck + white and primer
Image & text quality
Image quality  Resolution up to 1200 dpi
Text quality 4 point
Engine dimensions & weight
Printer dimensions (H x W x L) 2.0 m x 1.92 m x 6.83 m (6.56 ft x 6.29 ft x 22.4 ft)
ABF dimensions (H x W x L) 1.1 m x 2.96 m x 2.26 m (3.61 ft x 9.71 ft x 7.41 ft) without extension

1.1 m x 2.96 m x 3 m (3.61 ft x 9.71 ft x 9.84 ft) with extension

Flatbed printer with roll-to-roll unit weight 4100 kg (9039 lb)
ABF weight 1100 kg (2425 lb)
Room conditions
Temperature Between 16-25°C
Relative humidity Between 40-60%
Electricity & compressed air
Electricity Engine: 400-480 VAC, 3-phase, 50/60 Hz, 63A

ABF: 400-480 VAC, 3-phase, 50/60 Hz, 32A

Compressed air Min. 6 bar (87 PSI) (also for ABF)
System integration RIP/workflow software
Asanti, StoreFront, PrintSphere, third-party RIPs
